Tenko 46T: Schematics and user manual

Ongelezen bericht door Tjalling PE1RQM » 04 mar 2007, 14:44

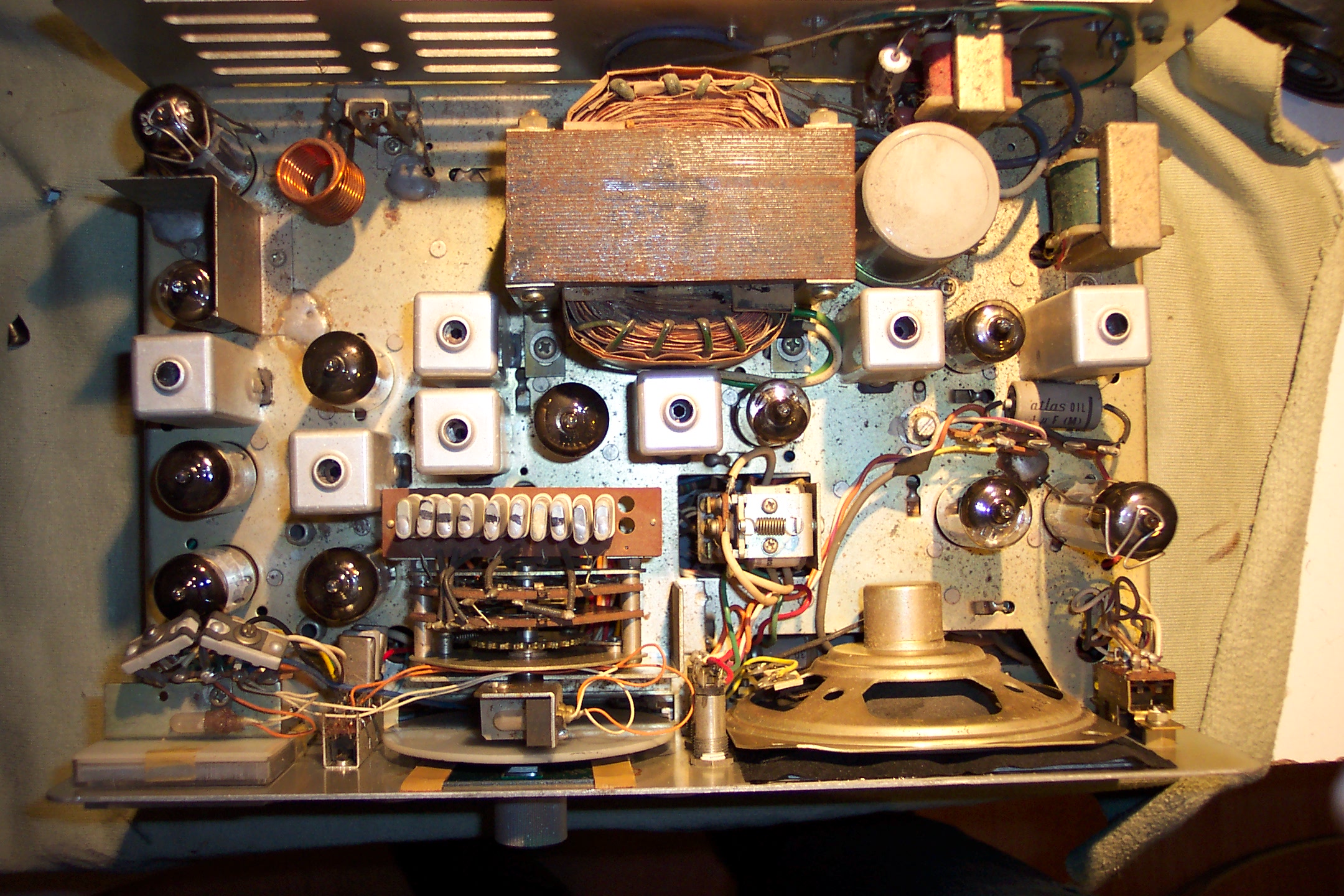

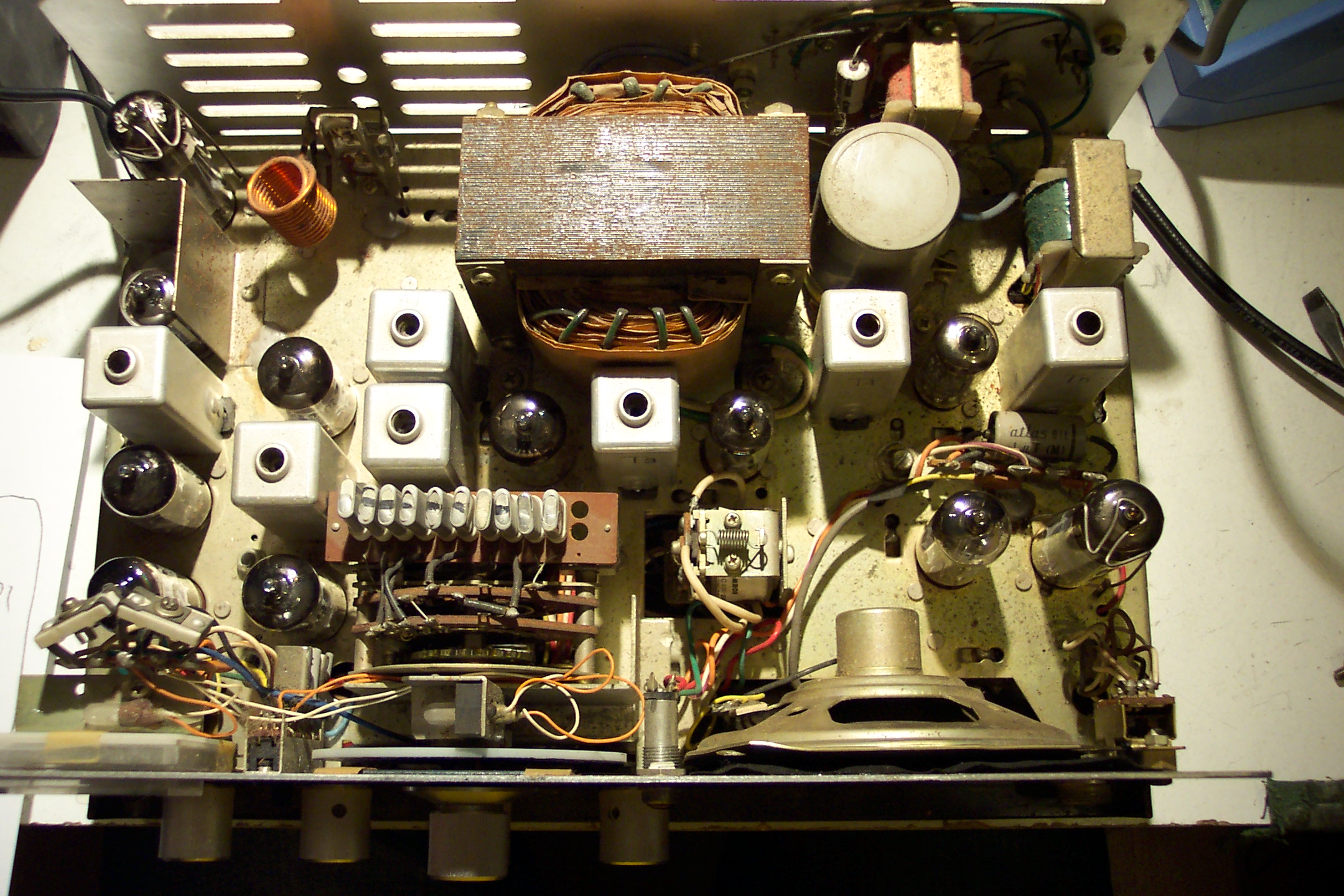

I made a scan of the user manual, schematics included, of the Tenko 46T AM 27MHz transceiver. Also some pictures and how the crystals are mounted in my model.
Bijlagen
Tenko46T User manual.pdf
Tenko 46T user manual and schematics
(3.01 MiB) 1015 keer gedownload
Crystals_Tenko46T.txt
Crystal arrangement
(249 Bytes) 773 keer gedownload
tenko46t.zip
All the information in one ZIP file
(5.24 MiB) 935 keer gedownload
